1KG=2.205LB 1INCH=25.40MM
|
型號 |

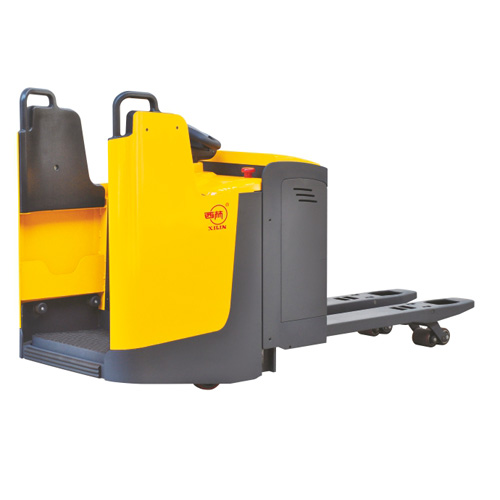

CBD20L |
|
|
驅動方式 |
電動 |
|
|
駕駛方式 |
站駕 |
|
|
額定載荷 |
Q(kg) |
2000 |
|
載荷中心距 |
c(mm) |
600 |
|
前懸距 |
x(mm) |
815/865/935 |
|
輪距 |
y(mm) |
1300/1350/1420 |
|
自重（帶電瓶） |
kg |
820 |
|
軸負載,滿載時前/后軸 |
kg |
1200/1620 |
|
軸負載,空載時前/后軸 |
kg |
700/120 |
|
輪子 |
聚氨酯輪 |
|
|
輪子尺寸，前輪 |
Φ250×80 |
|
|
輪子尺寸，后輪 |
Φ82×126（98） |
|
|
附加輪 |
Φ127×57 |
|
|
輪，前后數量（X=驅動輪） |
1×+2/4 |
|
|
前輪輪距 |
b10(mm) |
490 |
|
后輪輪距 |
b11(mm) |
340/370/470/505 |
|
起升高度 |
h3(mm) |
120 |
|
降低時高度 |
h13(mm) |
82 |
|
總體長度 |
l1(mm) |
2220/2270/2340 |
|
叉面長度 |
l2(mm) |
1120 |
|
車體寬度 |
b1(mm) |
773 |
|
貨叉尺寸 |
s/e/l(mm) |
54×180×1100（1150/1220） |
|
貨叉外寬 |
b5(mm) |
520/550/650/685 |
|
軸距中心離地間隙 |
m2(mm) |
28 |
|
通道寬度，托盤1000×1200（1200跨貨叉放置） |
Ast(mm) |
2420/2470/2540 |
|
通道寬度，托盤800×1200（1200沿貨叉放置） |
Ast(mm) |
2520/2520/2540 |
|
轉彎半徑 |
Wa(mm) |
1970/2020/2090 |
|
行駛速度，滿載/空載 |
Km/h |
7/7.1 |
|
提升速度，滿載/空載 |
m/s |
0.039/0.056 |
|
下降速度，滿載/空載 |
m/s |
0.064/0.050 |
|
最大爬坡能力，滿載/空載 |
% |
8/17 |
|
行車制動 |
電磁制動 |
|
|
驅動電機功率 |
kw |
1.2 |
|
提升電機功率 |
kw |
1.2 |
|
蓄電池電壓/額定容量 |
V/Ah |
24/240 |
|
蓄電池重量 |
kg |
225 |
|
蓄電池尺寸（長╳寬╳高） |
mm |
650╳249╳504 |
|
駕駛員耳邊噪音等級符合DIN12053 |
dB(A) |
70 |
